Area |
![](/icons/ecblank.gif) |
Time relays / Time relay types |
![](/icons/ecblank.gif) |
|
IEV ref |
![](/icons/ecblank.gif) |
445-01-04 |
![](/icons/ecblank.gif) |
|
en |
![](/icons/ecblank.gif) |
off-delay relay with control signal off-delay relay |
![](/icons/ecblank.gif) |
![](/icons/ecblank.gif) |

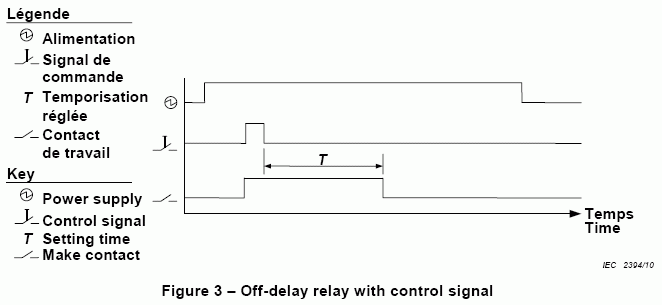

time relay in which the output immediately switches to the operate condition when applying the power supply and the control signal; the time delay starts when removing the control signal, and the output switches to the release condition after the setting time has elapsed (see Figure 3)
NOTE – Effects of subsequent operating or resetting of the control signal shall be declared by the manufacturer.
|
![](/icons/ecblank.gif) |
|
fr |
![](/icons/ecblank.gif) |
relais temporisé à la coupure avec signal de commande, m |
![](/icons/ecblank.gif) |
![](/icons/ecblank.gif) |

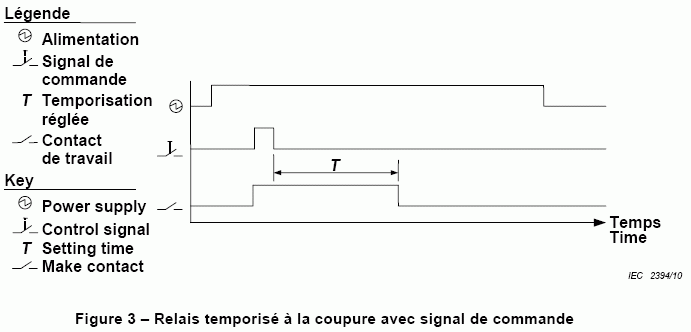

relais temporisé dans lequel la sortie passe immédiatement à l'état de travail lorsque l'alimentation et le signal de commande sont appliqués, la temporisation démarre lorsque le signal de commande est coupé, et la sortie passe à l'état de repos lorsque la temporisation réglée est écoulée (voir Figure 3)
NOTE – Il convient que les effets de manœuvres ou réamorçages subséquents sur le comportement du relais soient spécifiés par le fabricant. |
![](/icons/ecblank.gif) |
|
ar |
![](/icons/ecblank.gif) |
مُرَحِّل تأخير الفصل مُرَحِّل تأخير الفصل ذو اشارة تحكم |
|
de |
![](/icons/ecblank.gif) |
rückfallverzögertes Zeitrelais mit Steuersignal, n |
|
es |
![](/icons/ecblank.gif) |
relé temporizado al corte con señal de control |
|
fi |
![](/icons/ecblank.gif) |
päästöhidastettu aikarele apujännitteellä |
|
it |
![](/icons/ecblank.gif) |
Relè ritardato alla disinserzione con segnale di comando |
|
ko |
![](/icons/ecblank.gif) |
제어신호 있는 비지연 계전기 |
|
ja |
![](/icons/ecblank.gif) |
シグナルオフディレータイマ |
|
no |
nb |
relé med forsinket utkobling med styresignal |
|
|
no |
nn |
relé med forseinka utkopling med styresignal |
|
|
pl |
![](/icons/ecblank.gif) |
przekaźnik z opóźnionym powrotem, z wejściem sterującym |
|
pt |
![](/icons/ecblank.gif) |
relé temporizado à desoperação com sinal de controlo |
|
zh |
![](/icons/ecblank.gif) |
有控制信号的释放延时继电器 |
