Area Control technology / Behaviour and characteristics of transfer elements

IEV ref 351-45-27

Symbol
Δvε(t)

en
step response
time response of a linear time-invariant system, which initially is in steady state U0, V0, produced by application of a step function Δuε(t) = Kε·ε(t) to one of the input variables, where Δvε(t) = v(t) – V0 and Δuε(t) = u(t) – U0

SEE: Figure 5.

Note 1 to entry: The step response of a linear time-invariant system is proportional to the time integral of its impulse response.

Note 2 to entry: This entry was numbered 351-24-20 in IEC 60050-351:2006.


fr
réponse à un échelon, f
réponse temporelle d’un système linéaire invariant dans le temps, qui est initialement en régime établi U0, V0, produite par l’application d’une fonction échelon Δuε(t) = Kε·ε(t) à une des variables d’entrée, où Δvε(t) = v(t) – V0 et Δuε(t) = u(t) – U0

VOIR: Figure 5.

Note 1 à l’article: La réponse à un échelon d’un système linéaire invariant dans le temps est proportionnelle à l’intégrale temporelle de sa réponse impulsionnelle.

Note 2 à l'article: Cet article était numéroté 351-24-20 dans la CEI 60050-351:2006.

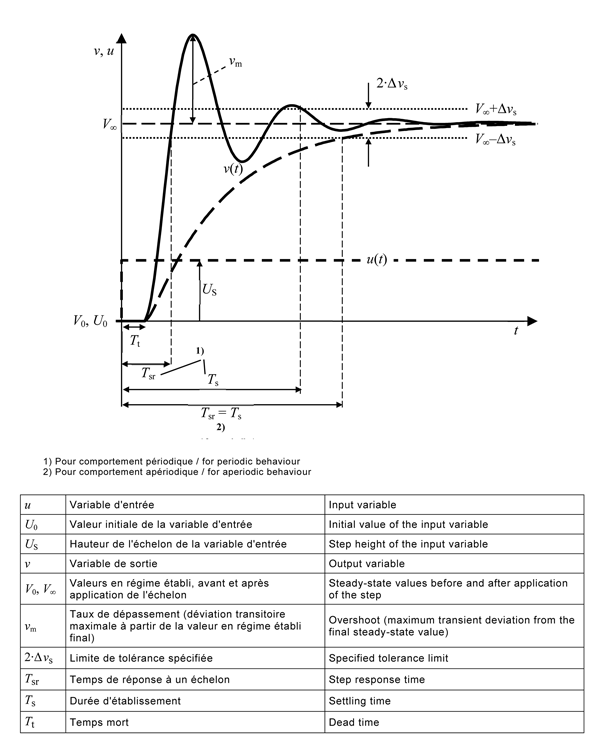

Figure 5 – Typical step responses of a system

Figure 5 – Réponses à un échelon typiques d'un système


ar
إستجابة خطوية

cs
skoková odezva

de
Sprungantwort, f

es
respuesta a escalón, f

fi
askelvaste

it
risposta al gradino

ko
스텝 응답
계단 응답

ja
ステップ応答

pl
odpowiedź skokowa

pt
resposta a um degrau

zh
阶跃响应

Publication date: 2013-11
