Area Circuit theory / Network topology

IEV ref 131-13-20

en
adjacency matrix
for a network containing n nodes and in which a reference direction is chosen for each branch, square matrix of order n where the element aij denotes the number of branches directed from node i to node j

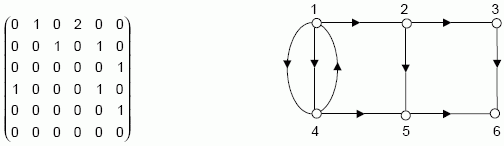

Note – The figure below gives a network and the corresponding adjacency matrix.


fr
matrice d'adjacence, f
pour un réseau contenant n noeuds et dont chaque branche est munie d'un sens de référence, matrice carrée d'ordre n dont l'élément aij indique le nombre de branches orientées du noeud i vers le noeud j

Note – La figure ci-dessous représente un réseau et la matrice d'adjacence correspondante.


ar
مصفوفة تجاور

de
Strukturmatrix, f

es
matriz de adyacencia

it
matrice delle adiacenze

ko
인접 행렬

ja
隣接行列

no
nb strukturmatrise

no
nn strukturmatrise

pl
macierz przyległości

pt
matriz de adjacência

zh
邻接矩阵

Publication date: 2002-06
