Term: on- and off-delay relay with control signal
Synonym1:
Synonym2:
Synonym3:
Symbol:

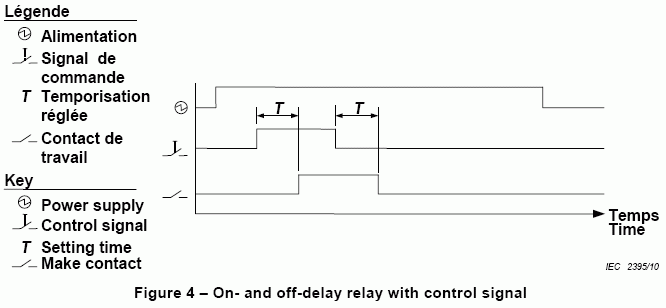

Definition: time relay in which the output switches to the operate condition when applying the power supply and the control signal and after the setting time has elapsed; the output switches to the release condition when the control signal is removed and after the setting time has elapsed (see Figure 4)

X

NOTE – Effects of subsequent operating or retriggering of the control signal should be declared by the manufacturer.
