IEVref:
445-01-02
ID:
Language:
en
Status:
Standard
Term:
power on-delay relay
Synonym1:
on-delay relay
[
Preferred
]
Synonym2:
Synonym3:
Symbol:
Definition:

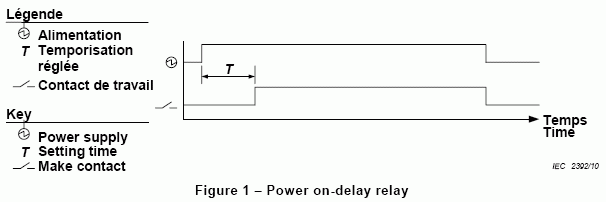

time relay in which the time delay starts when applying the power supply and the output switches to the operate condition after the setting time has elapsed (see Figure 1)
X
Publication
date
:
2010-10
Source
Replaces:
Internal notes:
CO remarks:
TC/SC remarks:
VT remarks:
Domain1:
Domain2:
Domain3:
Domain4:
Domain5:
time relay in which the time delay starts when applying the power supply and the output switches to the operate condition after the setting time has elapsed (see Figure 1)
